Chapter 14: Infrastructure as Code at Scale

From Repositories to Reliable Infrastructure APIs

📖 58 min read 🎯 Expert

Abstract

At scale, Infrastructure as Code (IaC) ceases to be “scripts that provision” and becomes the authoritative interface between platform engineering and product teams-a typed API whose behaviors are planned, reviewed, tested, and audited. This chapter analyzes IaC through software engineering epistemology: modules as abstraction boundaries, state as consistency challenge, and policy engines (OPA/Sentinel/CloudFormation Guard) as proof obligations attached to every plan. We compare Terraform, AWS CDK, and Pulumi not ideologically but by compositionality (can modules be reasoned about locally?) and blast radius of change.

14.1 Theoretical framing: desired-state convergence

Let desired configuration (D) live in a versioned repo; actual infrastructure (A(t)) drifts via console edits and emergent autoscaler behavior. IaC tools implement partial synchronisation maps (f: D \times A \rightarrow \Delta A) minimizing cost subject to provider constraints.

Definition 14.1 (Drift). (\delta = A \setminus f(D)) in the provider’s observable model-non-zero drift is normal; unmonitored drift is negligence.

Theorem sketch (informal). Without continuous plan-in-CI, the probability of undeclared dependency edges approaches 1 as team count grows (graph entropy of undocumented edges).

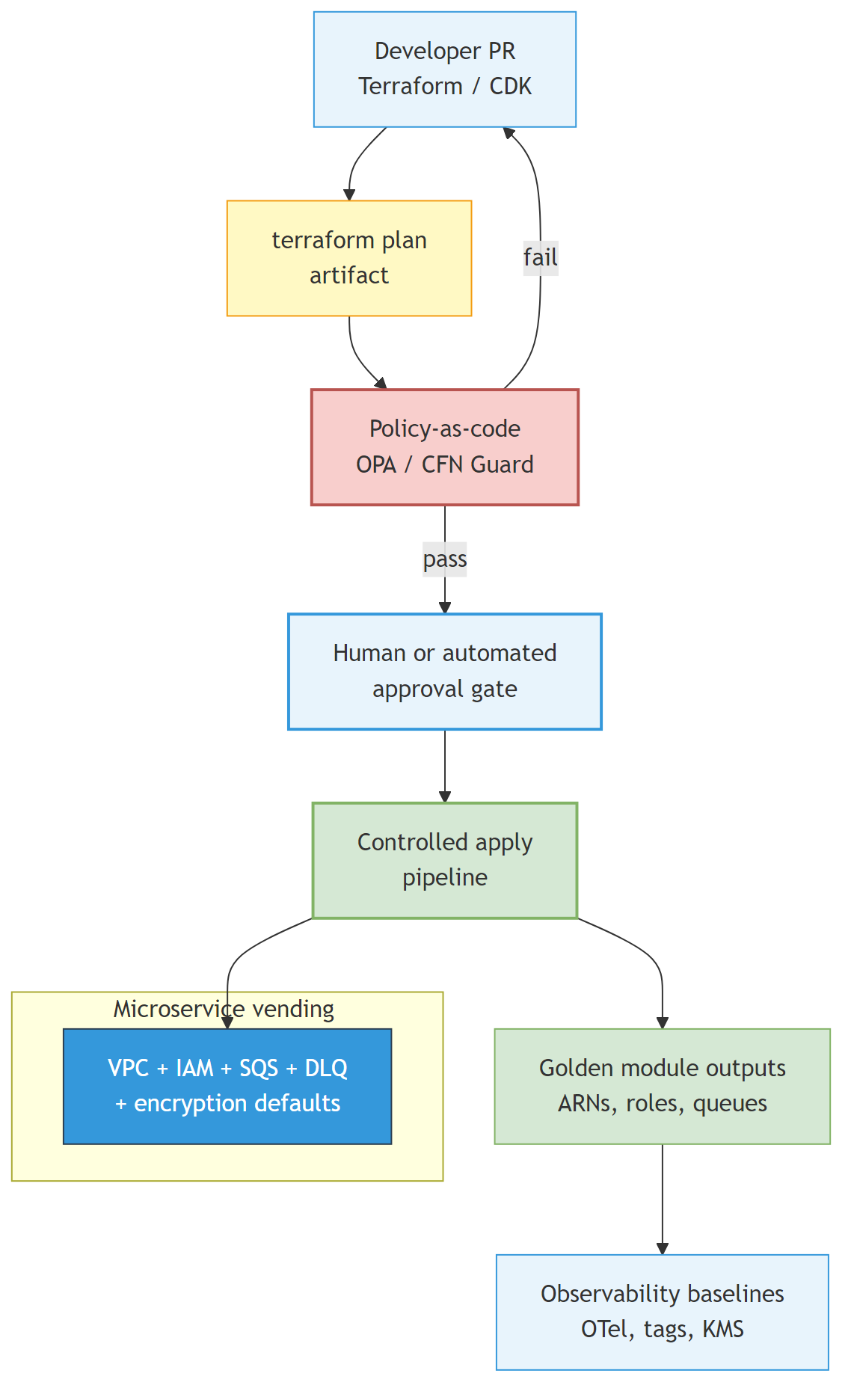

IaC golden path - plan, policy, approval, vending-machine module, observability baselines

Figure 14.1: Infrastructure as Code as a governed API with policy gates and golden-path module outputs.

14.2 Module design as microservice analog

Golden-path modules (VPC, EKS baseline, SQS+Lamdba “event sink”) should exhibit:

  1. Stable interface: minimal required inputs; semantic versioning.
  2. Encapsulated defaults: encryption, logging, tagging opinions inside module.
  3. Observable outputs: ARNs and endpoints exported for runtime wiring.

This is Inverse Conway for infrastructure teams: platform shapes what’s easy.

14.3 Policy-as-code: three-layer model

Layer Example Intent
Syntax / schema terraform validate, JSON Schema for CDK aspects Ill-typed programs rejected
Organizational policy OPA: “every S3 bucket must have KMS CMK” Compliance
Risk gates Size-of-diff, count of destructive ops Blast capsule

Recipe 14.1: Microservice “vending machine” module (Terraform interface)

variable "service_name" { type = string }
variable "owner" { type = string }

module "golden_service" {
  source  = "git::https://example.org/terraform-aws-golden-microservice.git?ref=v4.2.0"

  service_name = var.service_name
  tags = {
    Owner = var.owner
    Tier  = "customer-facing"
  }
  # wires SQS DLQ, OTel sidecar conventions, KMS keys - opinionated
}

output "invoke_role_arn" { value = module.golden_service.invoke_role_arn }

Review checklist: upgrade path for module major versions; state migration plan; multi-account role assumption pattern.

14.4 CDK / Pulumi interlude

CDK excels where constructs encode AWS best-practice defaults; danger is imperative escape hatches obscured in code review. Pulumi suits teams needing familiar PL TDD; risk is unbounded dynamic resource creation.

Decision rule: standardize one control-plane language for landing zones; allow app teams scoped CDK apps that compile to CloudFormation only through vetted constructs.

14.5 Limits of IaC

Day-2 operations (kernel tuning, JVM GC, data rebalancing) often elude declarative models. Supplement with runbooks, controllers (Operator pattern), and SLO-driven automation.

14.6 Synthesis

IaC scale is social as much as technical: reviewers must treat plans as semantic diffs with business impact. Connect outputs to Observability 2.0 (Chapter 15) so promoted configs emit required telemetry by construction.
