Chapter 19: The Strangler Fig Pattern

Gradual Substitution as Controlled Experiment on Production

📖 55 min read 🎯 Expert

Abstract

The Strangler Fig pattern intercepts traffic at a facade (API Gateway / reverse proxy), incrementally routing selected capabilities to rewritten implementations while legacy paths remain operational. Unlike big-bang rewrite, strangler migrations admit A/B and canary semantics with measurable parity, linking directly to observability (Chapter 15) and dual-write principles (Part II). We analyze routing graphs, VPC Link integration for private legacy ALBs, and data strangler concerns: transactional outbox, CDC, reconciliation jobs.

Strangler Fig routing concept

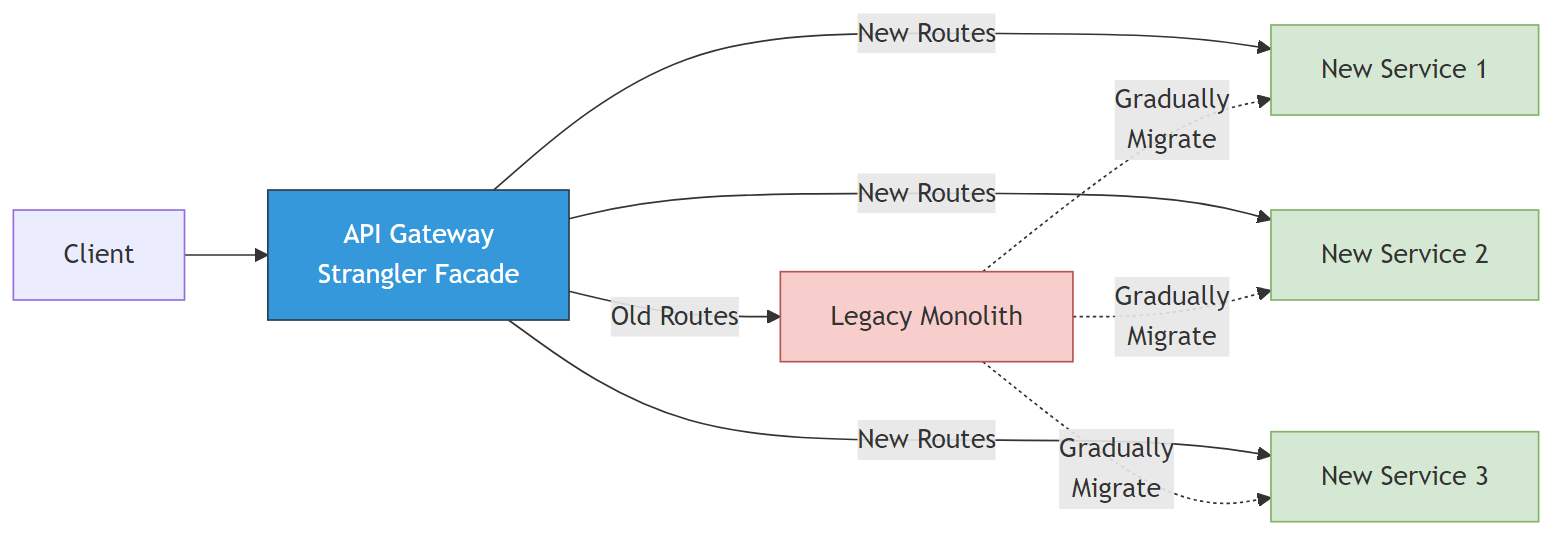

Figure 19.1: Intercept at edge; route new paths to new stack; default to legacy via greedy proxy.

19.1 Graph-theoretic view

Let legacy system (L) expose path set (\mathcal{P}). New service (N) handles (Q \subseteq \mathcal{P}). A correct migration satisfies behavioral equivalence on (Q) modulo declared non-functional deltas (latency budgets).

Invariant 19.1 (Coverage monotonicity). Along a migration timeline, (Q_t) should grow monotonically (allow temporary rollbacks only with versioned feature flags).

19.2 Greedy proxy architecture (AWS)

  1. API Gateway ANY /{proxy+} → HTTP_PROXY to legacy ALB (VPC Link).
  2. Specific resources /orders, /v2/checkout → Lambda / ECS before greedy match order.

Strangler data plane - routing, outbox, CDC, and read-model parity

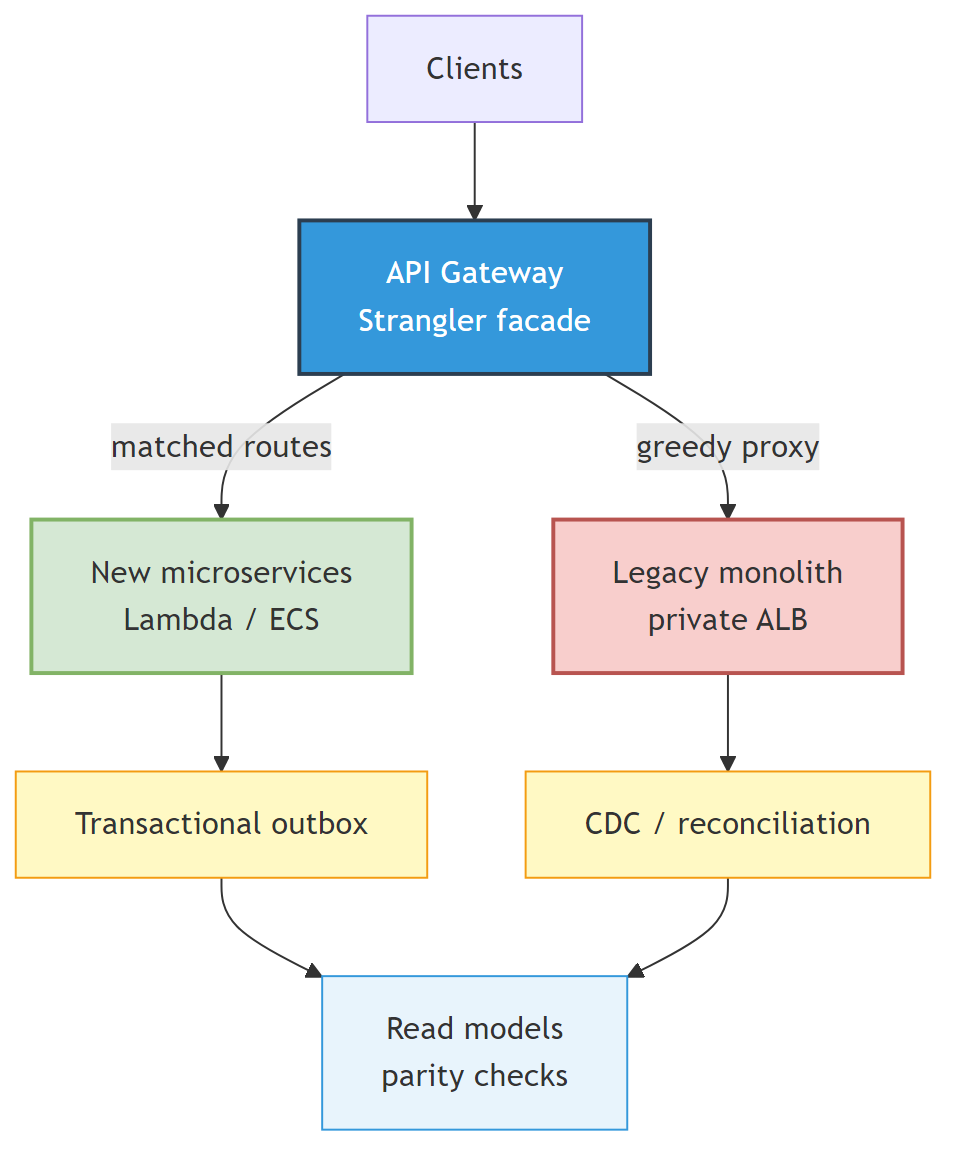

Figure 19.2: Data strangler concerns: outbox and CDC reconciliation behind the routing facade.

Recipe 19.1: Terraform fragments (illustrative)

resource "aws_api_gateway_resource" "greedy" {
  rest_api_id = aws_api_gateway_rest_api.edge.id
  parent_id   = aws_api_gateway_rest_api.edge.root_resource_id
  path_part   = "{proxy+}"
}

resource "aws_api_gateway_integration" "legacy_proxy" {
  rest_api_id             = aws_api_gateway_rest_api.edge.id
  resource_id             = aws_api_gateway_resource.greedy.id
  http_method             = aws_api_gateway_method.any.http_method
  type                    = "HTTP_PROXY"
  integration_http_method = "ANY"
  uri                     = "http://${aws_lb.legacy.dns_name}/{proxy}"
  connection_type         = "VPC_LINK"
  connection_id           = aws_api_gateway_vpc_link.legacy.id
}

Security: mutual TLS or SigV4 between gateway and legacy when crossing account boundaries.

19.3 Data-plane strangler

Naive routing without state reconciliation yields split-brain. Patterns:

  • Dual-write window + outbox for authoritative events.
  • Strangler read models behind feature flags with staleness SLA display.

19.4 Verification discipline

Contract tests on (Q); synthetic transactions comparing legacy vs strangler responses; shadow traffic with null side-effects.

19.5 Organizational dynamics

Strangler is portfolio management: fund explicit parity milestones; avoid “10% traffic forever.”

19.6 Synthesis

Strangler turns migration into evidence-driven substitution, compatible with KM3 maturity checkpoints (Chapter 20) before legacy decommission.
